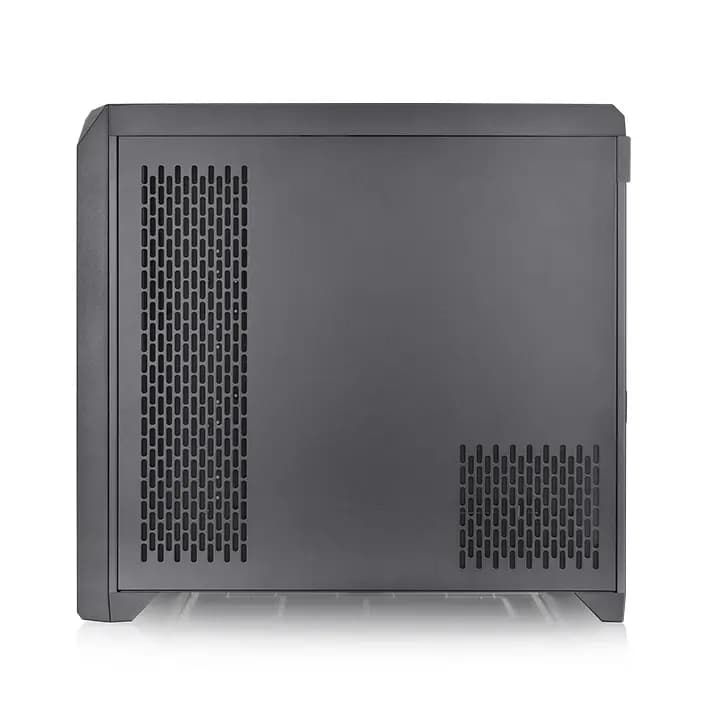

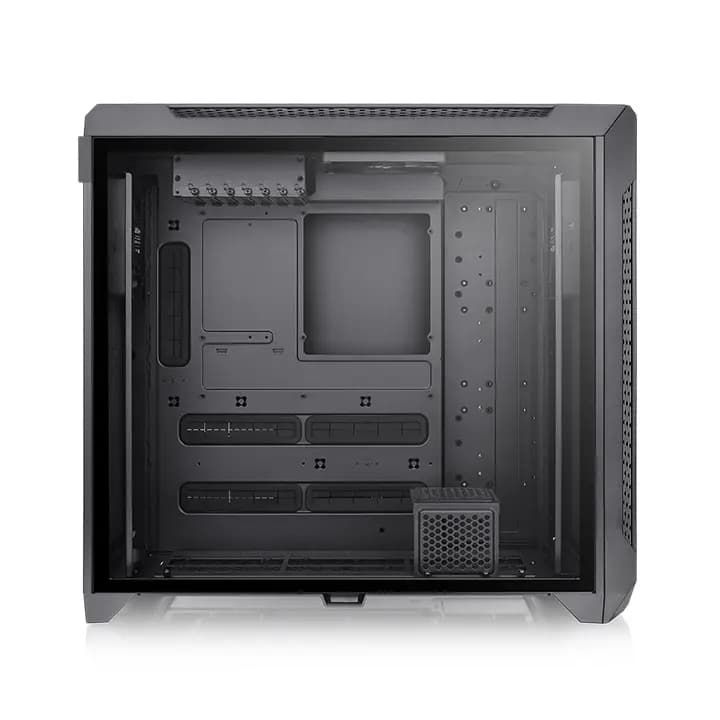

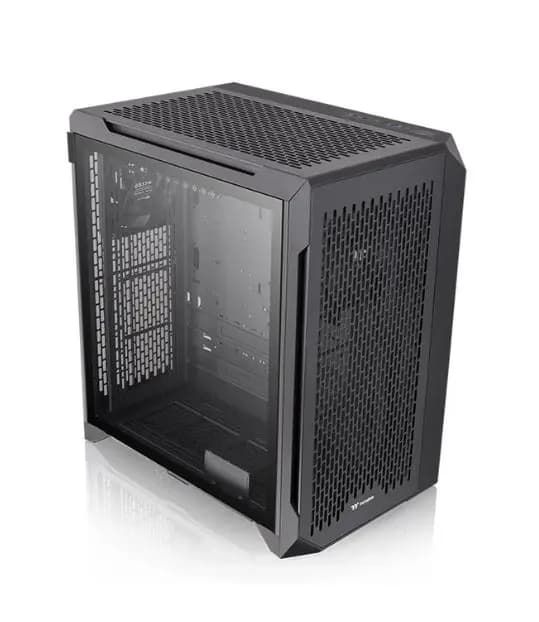

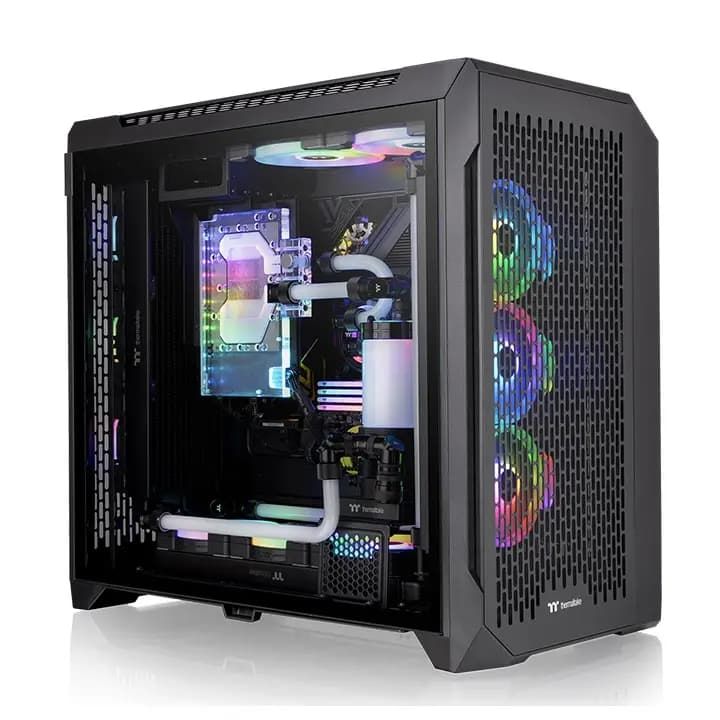

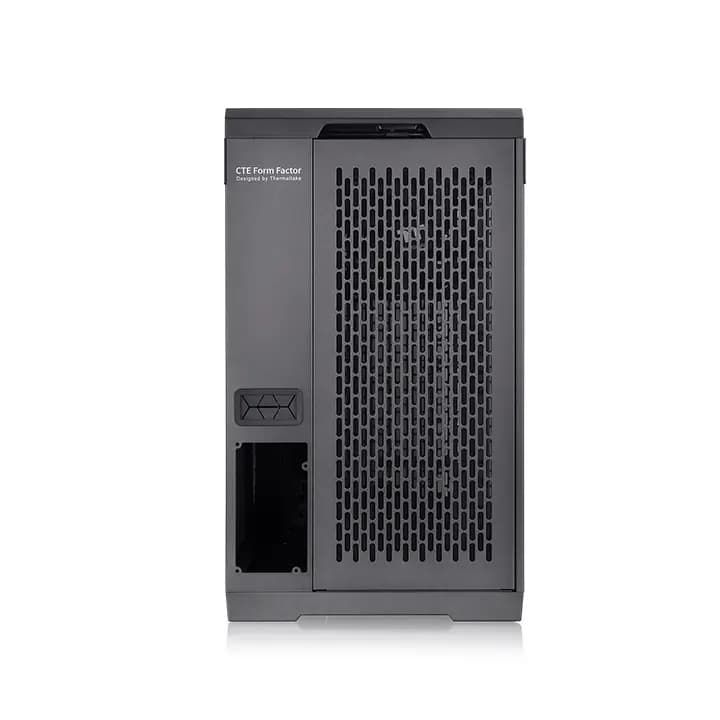

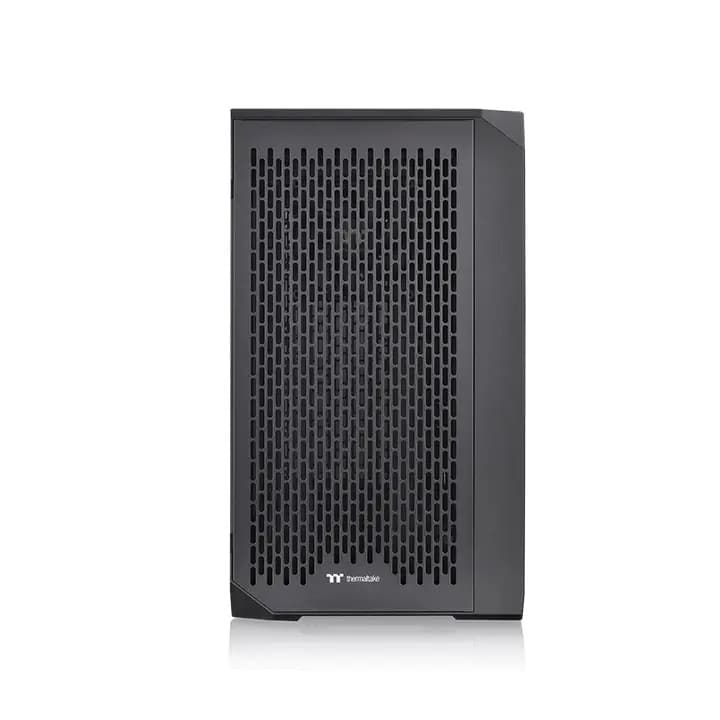

CTE C700 Air Mid Tower Chassis, Case, Black, 566.5 x 327.6 x 505.5 mm

P/N
CA-1X7-00F1WN-00
Series
CTE
CASE TYPE
Mid Tower
Dimension (H x W x D)
566.5 x 327.6 x 505.5 mm
(22.3 x 12.9 x 19.9 inch)
NET WEIGHT
15.6 kg / 34.39 lbs.
PANEL
4mm Tempered Glass x 1
Color
Black
MATERIAL
SPCC / ABS
COOLING SYSTEM
Front(intake):
 140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1
Drive Bays
7 x 3.5” or 6 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
 Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
1 x 120mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
 Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Bottom:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler max height:
190mm
 VGA max length:
327mm (With radiator)
410mm (Without radiator)
 PSU max length:
220mm
